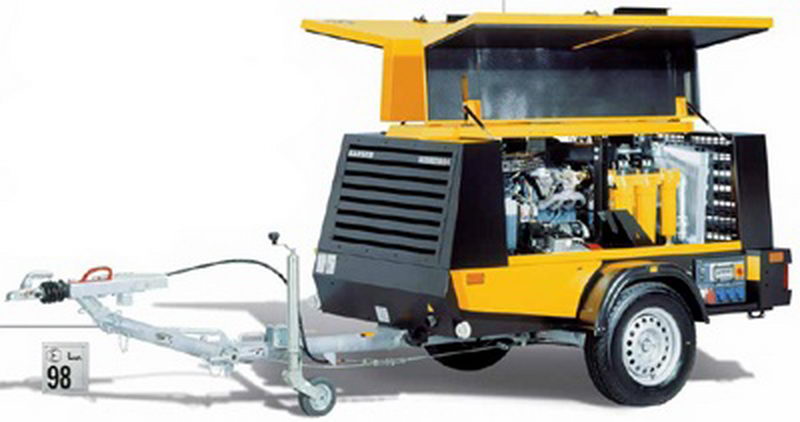

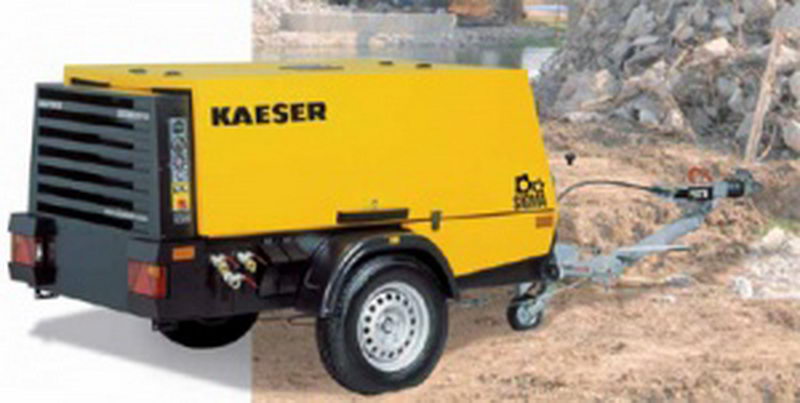

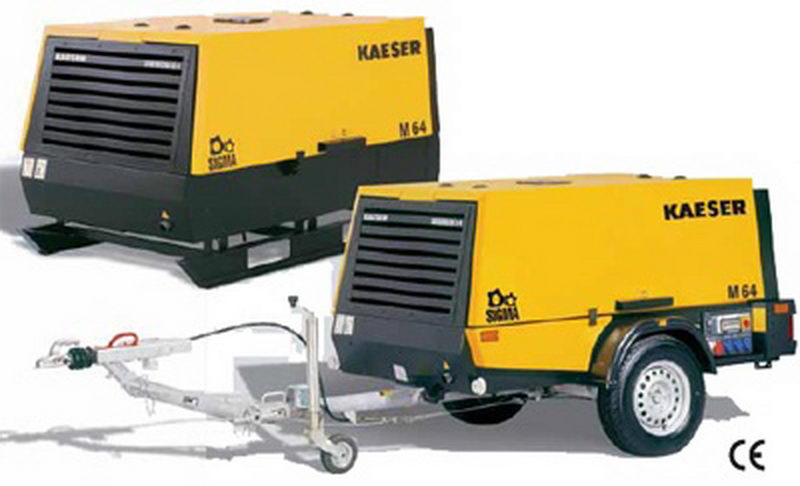

M52/64
DATE TEHNICE
| Model | M 52 | M 52-G ; 8,5kva | M 64 | M 64-G ; 8,5kva |
| Free air delivery | 5,2 mc/min | 5,2 mc/min | 6,4mc/min ; 5,0mc/min | 6,4mc/min ; 5,0mc/min |
| Working pressure | 7 bar | 7 bar | 7 bar ; 10 bar | 7 bar ; 10 bar |
| 4-cylinder diesel engine water cooled | Kubota | Kubota | Kubota | Kubota |
| Motor model | V2203 | V2203 | V2003T | V2003T |
| Rated motor power | 34,3 kw | 34,3 kw | 41,8 kw | 41,8 kw |
| Speed at full load | 2850 rpm | 2850 rpm | 2750 rpm | 2750 rpm |
| Speed when idling | 2000 rpm | 2000 rpm | 2000 rpm | 2000 rpm |
| Fuel tank capacity | 105 l | 105 l | 105 l | 105 l |
| Air connection | 2xG3/4" ; 1xG1" | 2xG3/4" ; 1xG1" | 2xG3/4" ; 1xG1" | 2xG3/4" ; 1xG1" |
